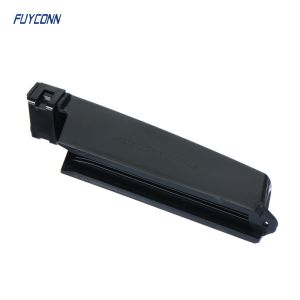

TE 5229912-1 Replacement Connector, IDC D-Sub Connector Kit, 50pos Plug, Signal, 2.16 mm Pitch
IDC D-sub CHAMP docking plug connector kit, intended for cable to cable applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.16 mm and used for signal circuit application.
D-Shaped connectors provide an electrical connection in a metal shell manufactured in the shape of a "D." Our d-connectors are compact pin and socket connectors designed to transmit power and signal in communications equipment, especially in high-density packages. These connectors are commonly used to connect computer monitors to personal computers as well as for connecting peripheral devices. Our D-Shaped connectors can address the rugged performance requirements of commercial and military applications. We manufacture DB9 connectors (9-pin dsub connector), DB15 connectors (15-pin dsub connector), and DB25 (25-pin dsub connector). Our D-Shaped connectors are produced as female connectors and male connectors. Our portfolio includes D-subminiature connectors (also known as D-sub connectors), which are designed to provide a cost-effective solution for making secure, reliable connections in high-density circuits within complex applications. Our Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification. Our D-Shaped connectors are manufactured under our top product families: AMP, AMPLIMITE, AMPMODU, and Raychem
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.
Product Features
-
Number of Positions : 14 | 36 | 50 | 64 | 68 | 80
-
Connector & Housing Type : Plug
-
Connector System : Cable-to-Board | Cable-to-Cable | Cable-to-Panel
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Centerline (Pitch) : 2.16 mm [ .085 in ]
Product Type Features
-
Connector & Housing Type Plug
-
Connector System Cable-to-Board | Cable-to-Cable | Cable-to-Panel
-
Connector Product Type Connector Kit
-
Connector & Contact Terminates To Wire & Cable
-
Connector Product Type Connector Kit
Configuration Features
-
Compatible With Wire & Cable Type Discrete Wire | Round Jacketed Cable
-
Number of Rows 2
-
Number of Positions 14 | 36 | 50 | 64 | 68 | 80
-
Compatible With Wire & Cable Type Discrete Wire | Round Jacketed Cable
-
Number of Rows 2
Body Features
-
Cover Material ABS Molding Compound | Polyethylene | Polyphenylene Oxide | Thermoplastic
-
Connector Profile Standard
-
Insert Material ABS Molding Compound
-
Cable Exit Angle (°) 90 | 180
-
Primary Product Color Black
-
Shield Material Carbon Steel
-
Shield Plating Material Nickel
Contact Features
-
Contact Mating Area Plating Material Thickness (µin) 30
-
Contact Mating Area Plating Material Gold (Au) | Gold or Gold Flash
-
Contact Base Material Copper Alloy | Phosphor Bronze
-
Contact Mating Area Plating Material Thickness .76 µm [ 30 µin ]
-
Contact Underplating Material Palladium Nickel
-
Contact Current Rating (Max) (A) .5 | 1 | 3.5
-
Contact Options Installed | Supplied – Uninstalled
Termination Features
-
Termination Method to Wire & Cable Insulation Displacement (IDC)
Mechanical Attachment
-
Mating Retention With
-
Thread Size 4-40 | 4-40 UNC 2B
-
Mating Retention Type Bail Lock | Screwlocks
-
Connector Mounting Type Cable Mount (Free-Hanging)
Housing Features
-
Housing Material Polyphenylene Oxide | Thermoplastic
-
Centerline (Pitch) 2.16 mm [ .085 in ]
Dimensions
-
Compatible Insulation Diameter Range (in) .029 – .045 | .045
-
Compatible Cable Insulation Diameter Range (mm) 1.14 | 6.35 – 12.7 | 8.89 – 15.88 | 8.89 – 10.8 | 10.8 – 12.7 | 11.43 – 13.97
-
Compatible Cable Insulation Diameter Range (in) .045 | .25 – .5 | .35 – .625 | .35 – .425 | .425 – .5 | .45 – .55
-
Compatible Insulation Diameter Range (mm) 1.14
-
Wire Size (AWG) 24 | 26 | 26 – 24 | 27 | 28
-
Compatible Insulation Diameter (Max) 1.14 mm [ .045 in ]
-
Stranded Wire Size (AWG) 24 | 26 | 27 | 28
-
Stranded Wire Size (mm²) .09 | .1 | .14 | .33
-
Compatible Cable Diameter (Max) (mm) 10.8 | 12.7 | 15.88
-
Compatible Cable Diameter (Max) (in) .425 | .5 | .625
-
Solid Wire Size (mm²) .13 – .32
-
Compatible Insulation Diameter (Max) (mm) 1.14
-
Solid Wire Size (AWG) 26 – 24
-
Stranded Wire Size (AWG) 24 | 26 | 27 | 28
-
Wire Size (AWG) 24 | 26 | 26 – 24 | 27 | 28
-
Stranded Wire Size (mm²) .09 | .1 | .14 | .33
-
Solid Wire Size (AWG) 26 – 24
